ARS SOLAR

CORRUGATED
METAL ROOF

Basic elements of the mounting system

Mounting Rails: Structural components that provide the base for attaching equipment, usually solar panels. The tracks are designed to ensure stability and correct alignment during installation.

Clamps: Used to securely hold panels to mounting rails. There are two main types:
Intermediate Clamps: Placed between two panels to secure them together.
End Clamps: Located at the edges of the solar panel array to secure the external panels.

Mounting brackets: Attach the rails to the roof or ground structure. These brackets are designed to withstand various environmental conditions and provide a solid anchor to the system.

Bolts and screws: Essential components used to secure all elements, ensuring the integrity and safety of the installation.

Base Mounts: For ground-mounted systems, base mounts are used to secure the mounting system to the ground, ensuring proper stability and alignment.

Roofing Sheet (for roof mounts): Waterproofing materials installed between the roof and mounting brackets to prevent leaks, ensuring a long-lasting, secure installation.

These elements work together to ensure the safety and operational efficiency of the system, offering flexibility to adapt to different installation environments.

SHORT RAIL 40
Cod. SPF0287

SHORT RAIL 70
Cod. SPF0247

END CLAMP
Cod. SPF0092

MID CLAMP
Cod. SPF0100

END CLAMP SHORT RAIL 40
Cod. SPF0286

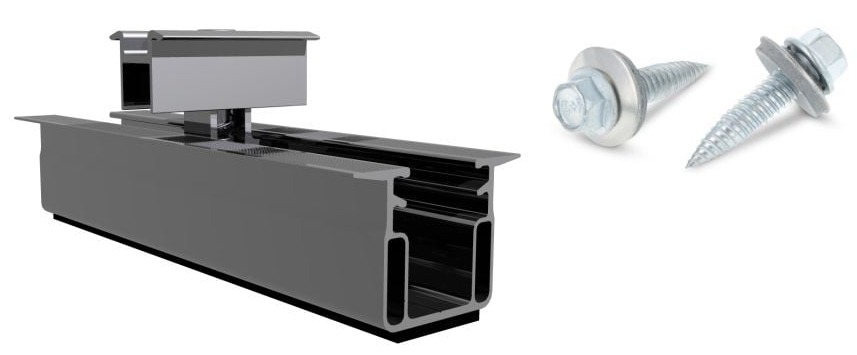

MID CLAMP SHORT RAIL 40
Cod. SPF0285

END CLAMP SHORT RAIL 70
Cod. SPF0237

MID CLAMP SHORT RAIL 70
Cod. SPF0245

ADJUSTABLE SYSTEM
Cod. SPF0130

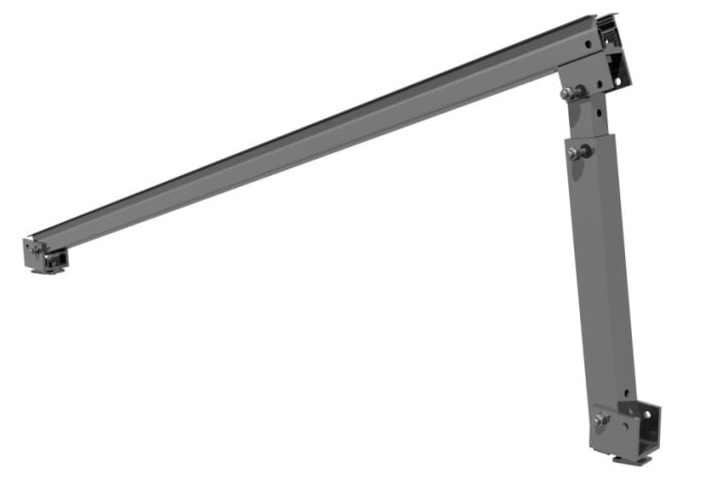

PROFILE KIT FOR TRIANGLE
Fixed inclination - PVM max. width 1134mm

Incl. I= 5° Cod. SPF0535
Incl. I= 10° Cod. SPF0423
Incl. I= 15° Cod. SPF0494
Incl. I= 20° Cod. SPF0521
Incl. I= 25° Cod. SPF0536
Incl. I= 30° Cod. SPF0537

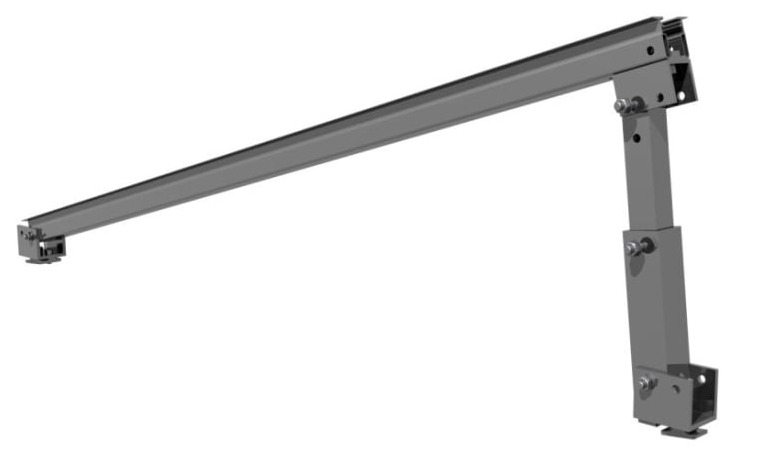

PROFILE KIT FOR TRIANGLE
Adjutable inclination
PVM max. width 1134mm

Incl. I= 5° Cod. SPF0538
Incl. I= 10 to 15° Cod. SPF0533
Incl. I= 20 to 30° Cod. SPF0539

SPACER JUNCTION for
South Oriented Solar Fields
Cod. SPF0525

BALLAST SUPPORTS
Small Size
Cod. SPF0458

BALLAST SUPPORTS FOR PVM
longer than 1600mm
Cod. SPF0463

BALLAST SUPPORTS FOR PVM
longer than 2000mm
Cod. SPF0529

SIMPLE L PROFILE TRIANGLE
Fixed inclination - PVM max. width 1134mm

Incl. I= 5° Cod. SPF0540
Incl. I= 10° Cod. SPF0541
Incl. I= 15° Cod. SPF0542
Incl. I= 20° Cod. SPF0543
Incl. I= 25° Cod. SPF0544
Incl. I= 30° Cod. SPF0545

Innovative and modular solutions for every installation need

ARS Solar solar panel fixing systems are designed to meet all mounting needs, guaranteeing stability, safety and ease of installation on any type of surface. From flat roofs to roofs with tiles or tiles, from bituminous flakes to flat pitches and up to corrugated sheet metal structures, each ARS Solar solution is designed to offer maximum versatility and high performance.

Our product range includes specific supports for inclined surfaces, integrated solutions for flat roofs and systems optimized for ground installations, ensuring perfect adaptation to different architectural contexts and environmental conditions. Thanks to the use of high quality materials and a modular design, ARS Solar fixing systems allow a simple and intuitive configuration, guaranteeing quick and safe installation, without compromising on resistance and durability over time.

We prioritize working with installers to resolve issues promptly and ensure smooth and efficient installation of our products.
