Aluminium structures for solar PV onflat roofs
MM_SPF0076MFStandard hook
MM_SPF0475MFShort base hook
MM_SPF0588MFHook with angular support for beam
MM_SPF0092MFEnd clamp
MM_SPF0752MFMini rail H25

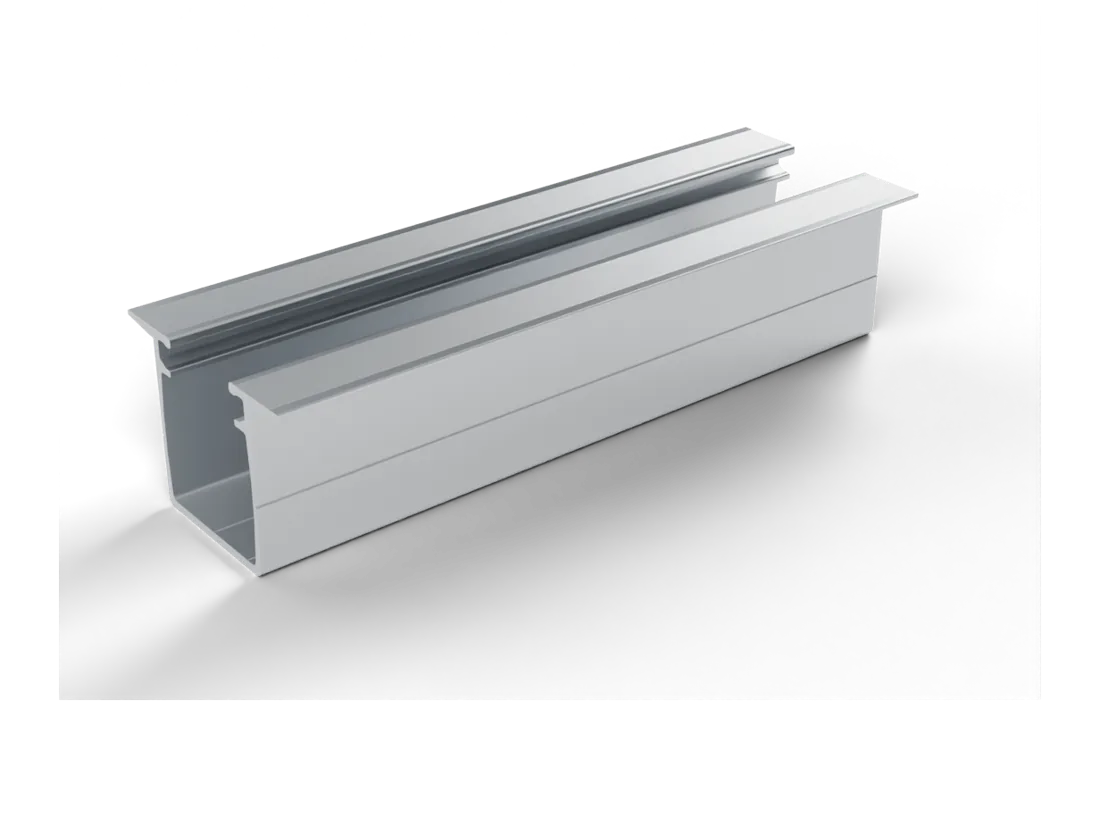

MM_SPF0733MFShort rail H40
MM_SPF0636MFMini rail H60

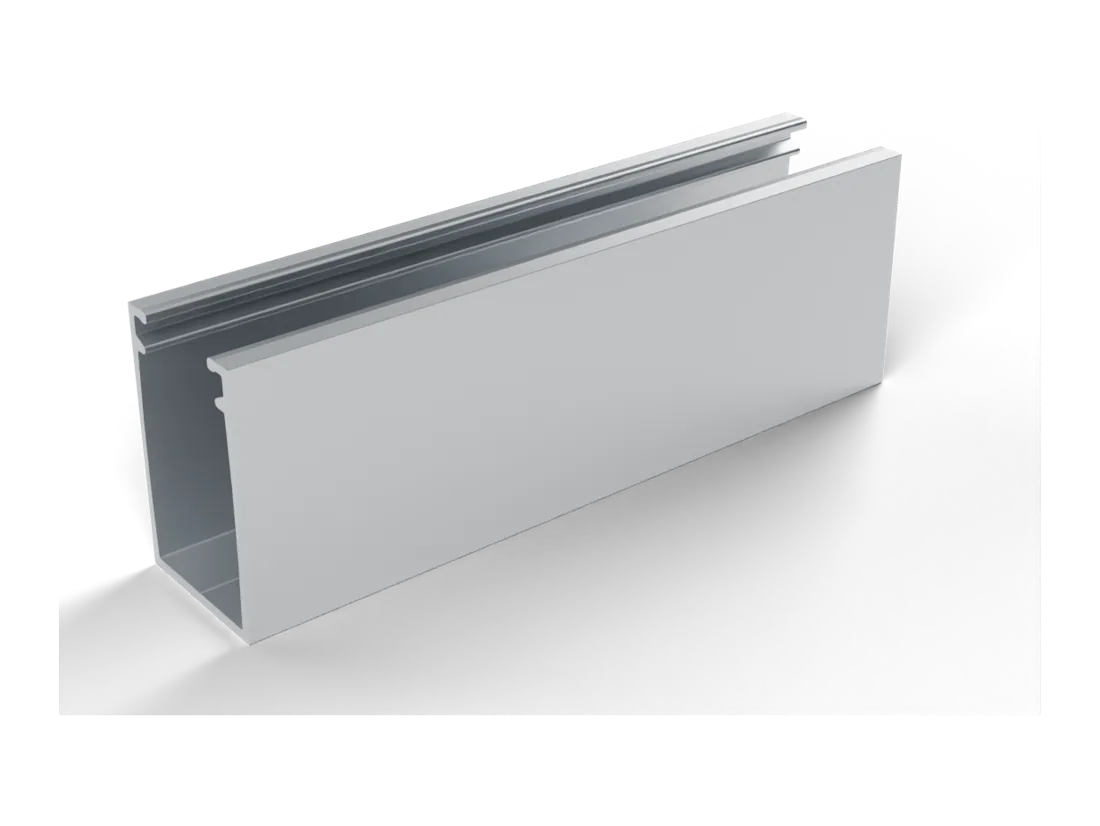

MM_SPF0746MFShort rail H60
MM_SPF0767MFJunction for mini rail H25

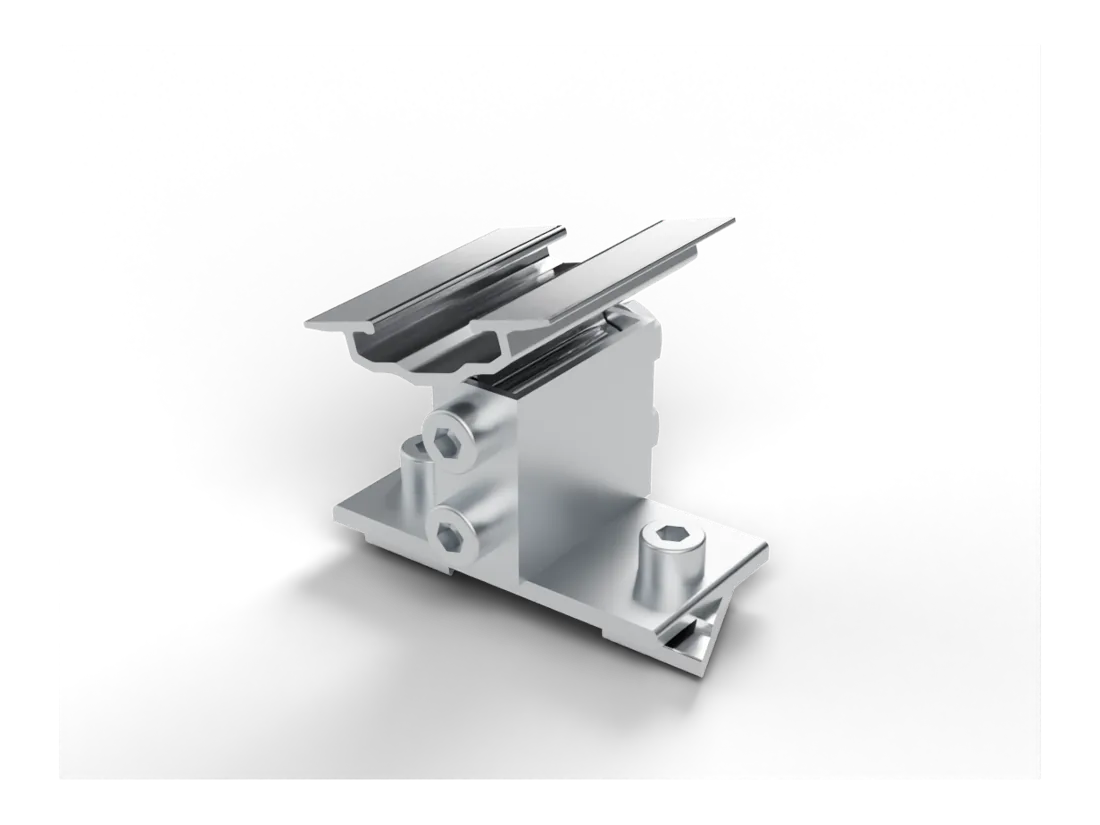

MM_SPF0773MFFront support CACA

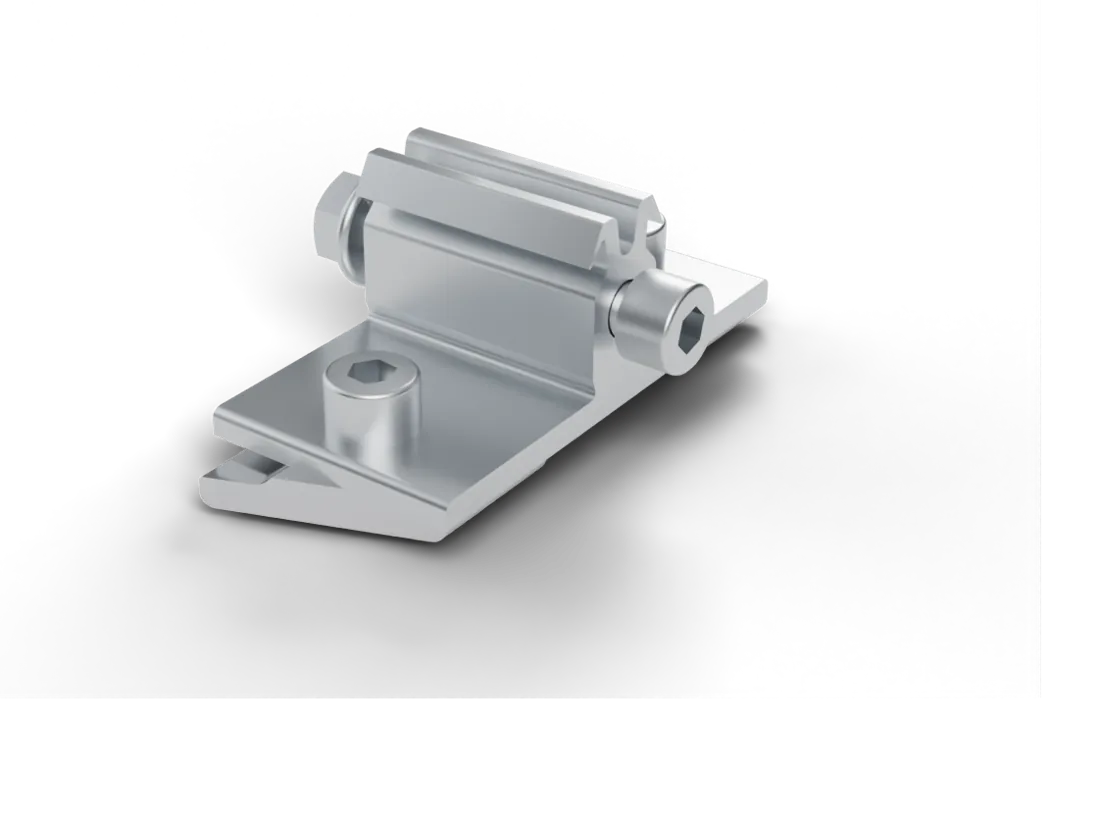

MM_SPF0771MFRear support CPCP

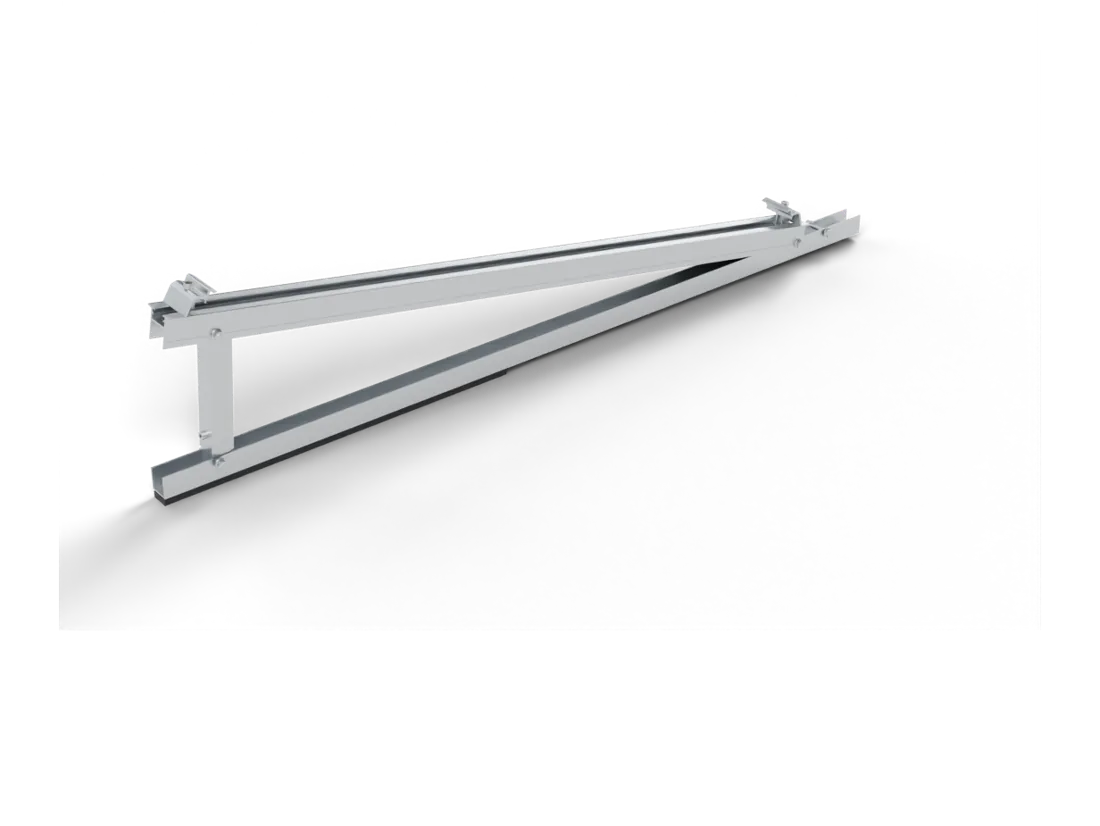

MM_SPF0790MFTriangle 5°, PV up to 1134 mmTRG 5°
MM_SPF0713MFBeam junction

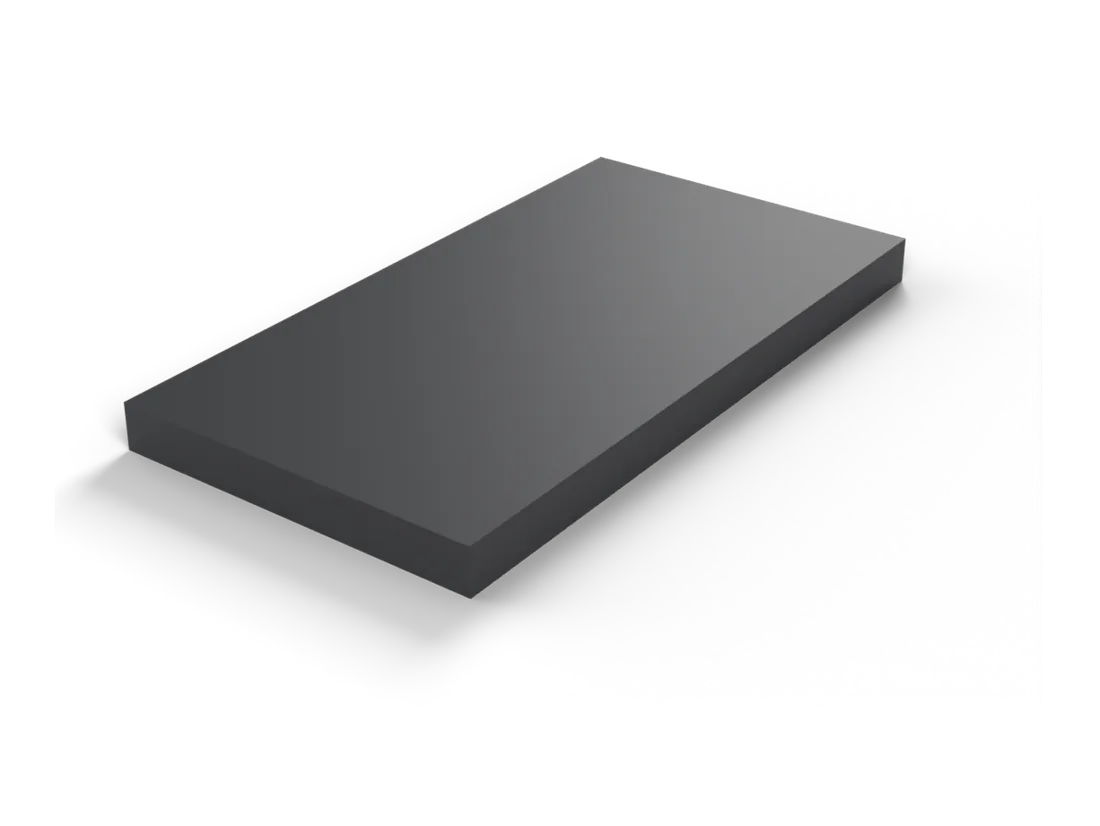

MM_SPF0582MFEPDM pad 150×80PAD
- MM_SPF0582MFEPDM pad 150×80PAD
- MM_SPF0713MFBeam junction
- MM_SPF0790MFTriangle 5°, PV up to 1134 mmTRG 5°
- MM_SPF0771MFRear support CPCP
- MM_SPF0773MFFront support CACA
- MM_SPF0767MFJunction for mini rail H25
- MM_SPF0746MFShort rail H60
- MM_SPF0636MFMini rail H60
- MM_SPF0733MFShort rail H40
- MM_SPF0752MFMini rail H25
- MM_SPF0092MFEnd clamp
- MM_SPF0588MFHook with angular support for beam
- MM_SPF0475MFShort base hook
- MM_SPF0076MFStandard hook
Start from your roof.
The 2026 catalogue is organised by roof type. Each system groups base elements, connection elements and module fastening elements, with codes, renders and drawings.
The Tower New system
From 0° to 20° for modules from 960 to 1134 mm, East-West or South orientation. To fit a different module you change just one part.
| Tilt | TW 992–1002 | TW 1134–1205 |
|---|---|---|
| 0° | CA/CP MM_SPF0773MF | — |
| 5° | MM_SPF0787MF | MM_SPF0785MF |
| 10° | MM_SPF0783MF | MM_SPF0781MF |
| 15°std | MM_SPF0779MF | MM_SPF0777MF |
| 20° | MM_SPF0775MF | MM_SPF0762MF |
Designed by people who have worked aluminium for over twenty years.
Change one part, not the system.
With Tower New, adapting the structure to a module size takes a single different part. Leftover parts can be reused on the next installation.
Modules rest where the manufacturer wants.
Support surfaces oscillate to match the positions required by module manufacturers, staying parallel to the module frame.
One column, two holes.
The column is a commercial tube with just two holes, so on-site changes take minutes.

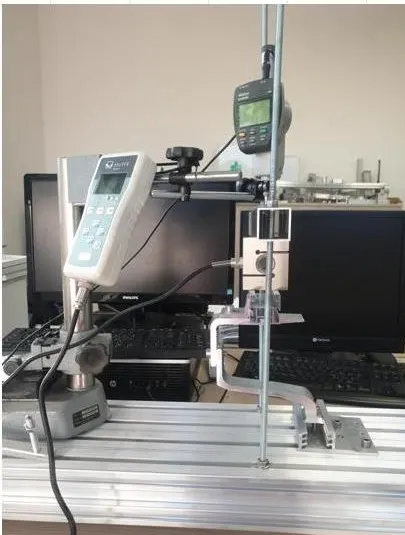

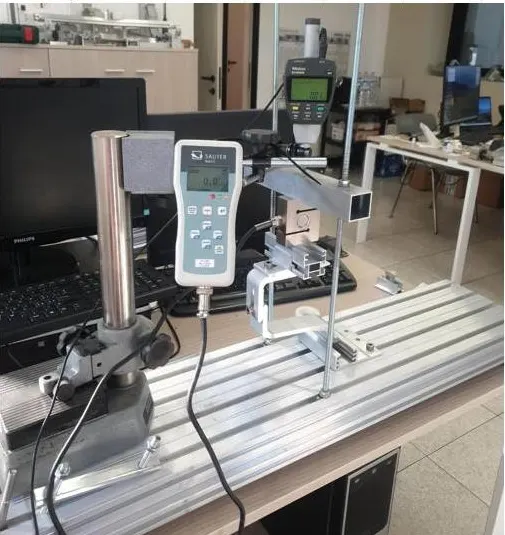

Bench tested, not just calculated.
End clamp tested at 940 kgf while still in the elastic range: over 2.5 times the point load of a 1304×2500 mm module at 4000 Pa. Hook MM_SPF0076MF 120 kgf, angular support MM_SPF0588MF 170 kgf per point.
6063 T66 extruded profiles, machined in house.
Profiles up to 6400 mm, EN 755-9 tolerances and UNI EN ISO 22768-mK machining. Custom lengths for minimum batches.
The catalogue,
piece by piece.
Hooks, rails, clamps, profiles, junctions, triangles and accessories. Every code with render, dimensioned drawing and downloadable technical sheet.
Browse all codes →Standard hook

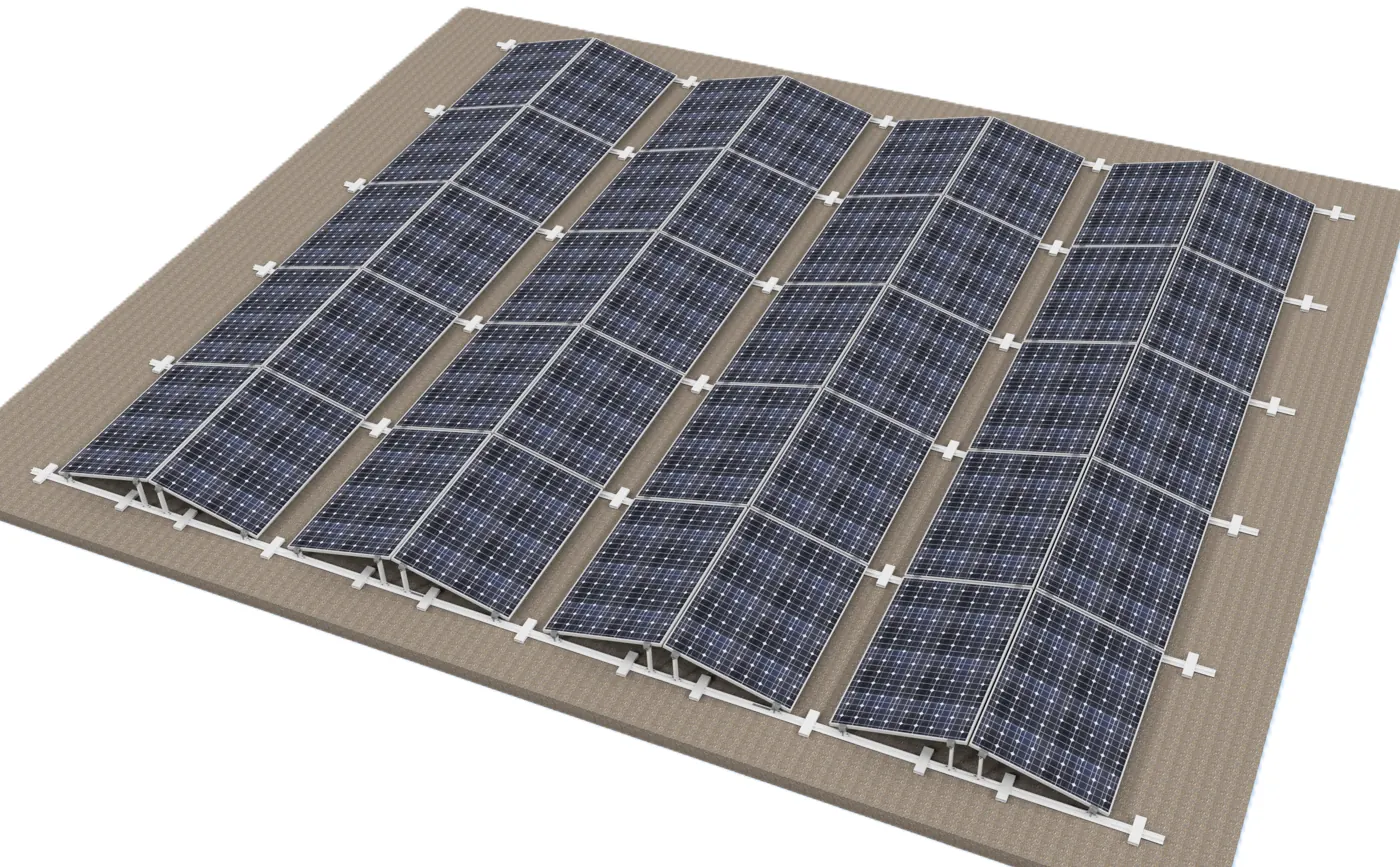

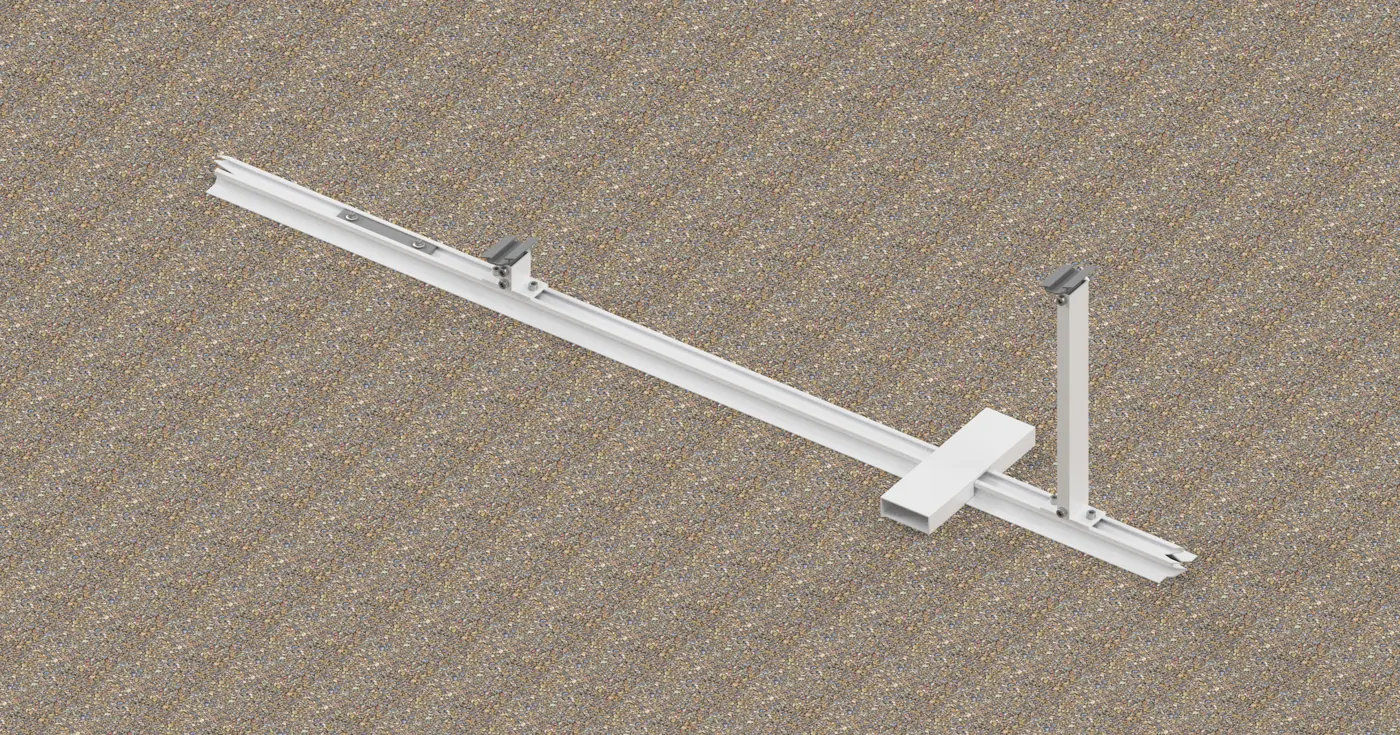

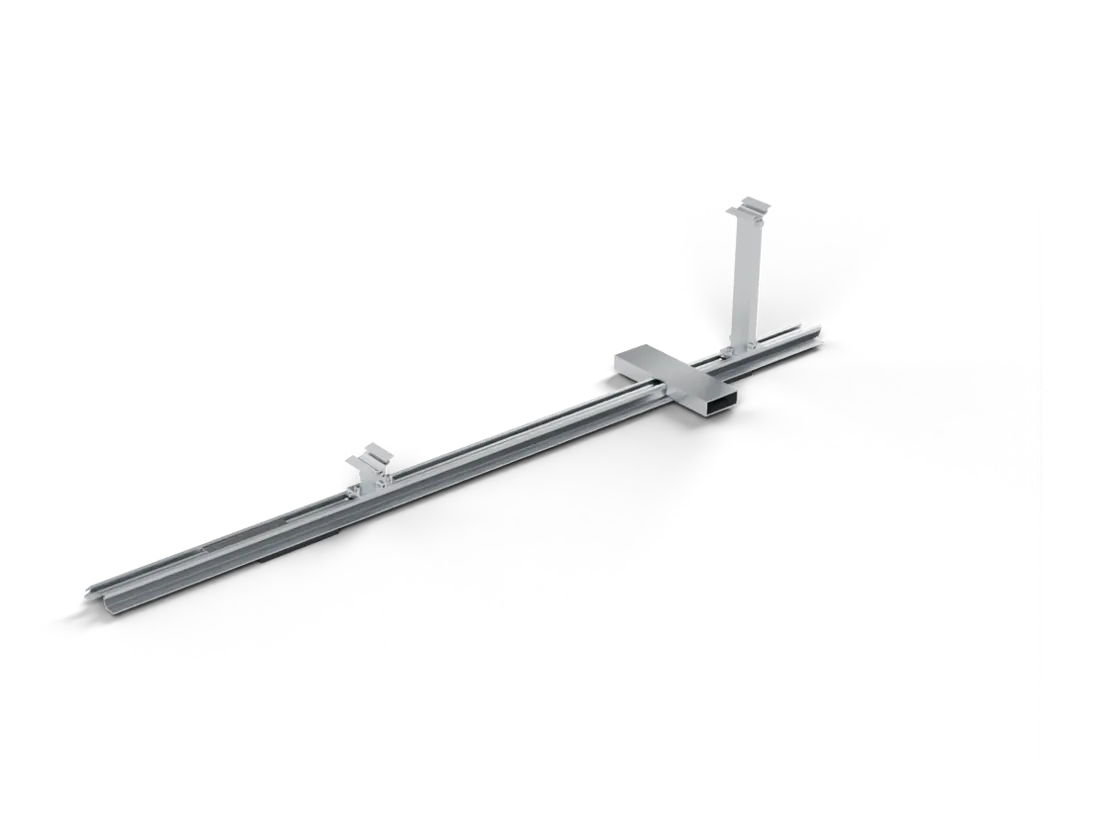

Tower New, South field

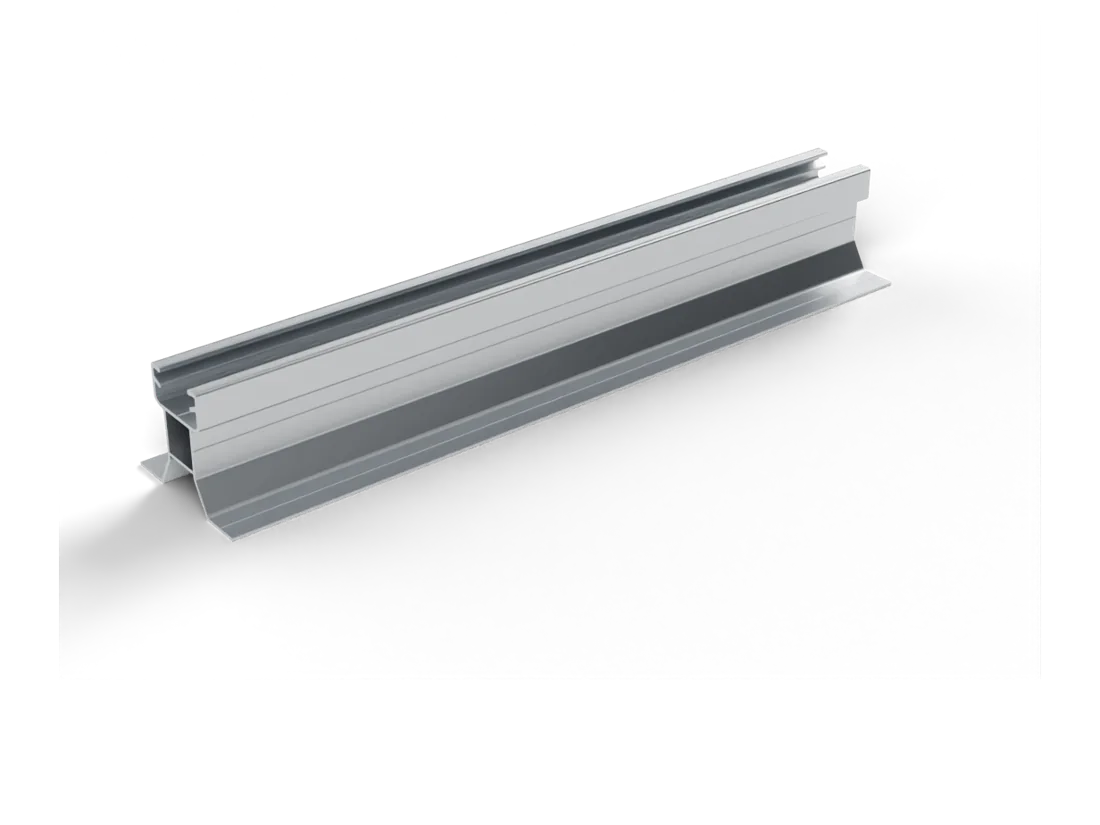

Mini rail H60 profile
Triangle 5°, PV up to 1134 mm
Trapezoidal metal roof

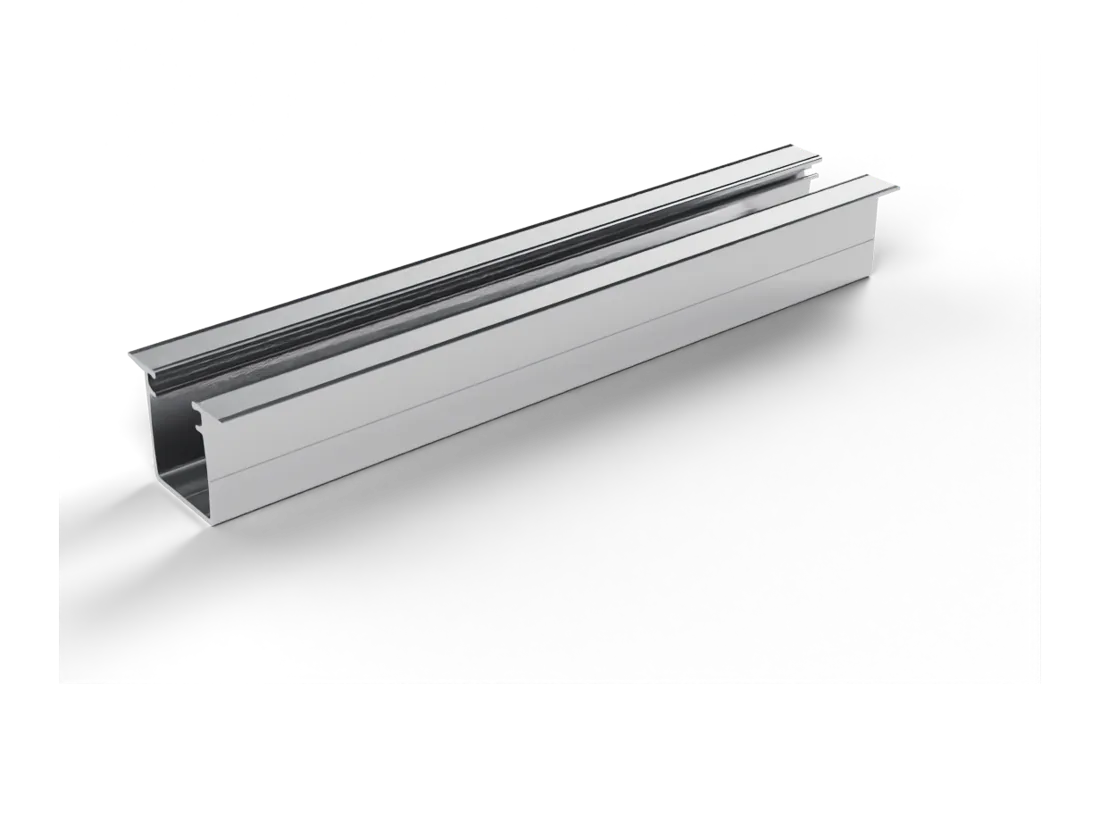

Rail H40 profile, 6.4 m
End clamp

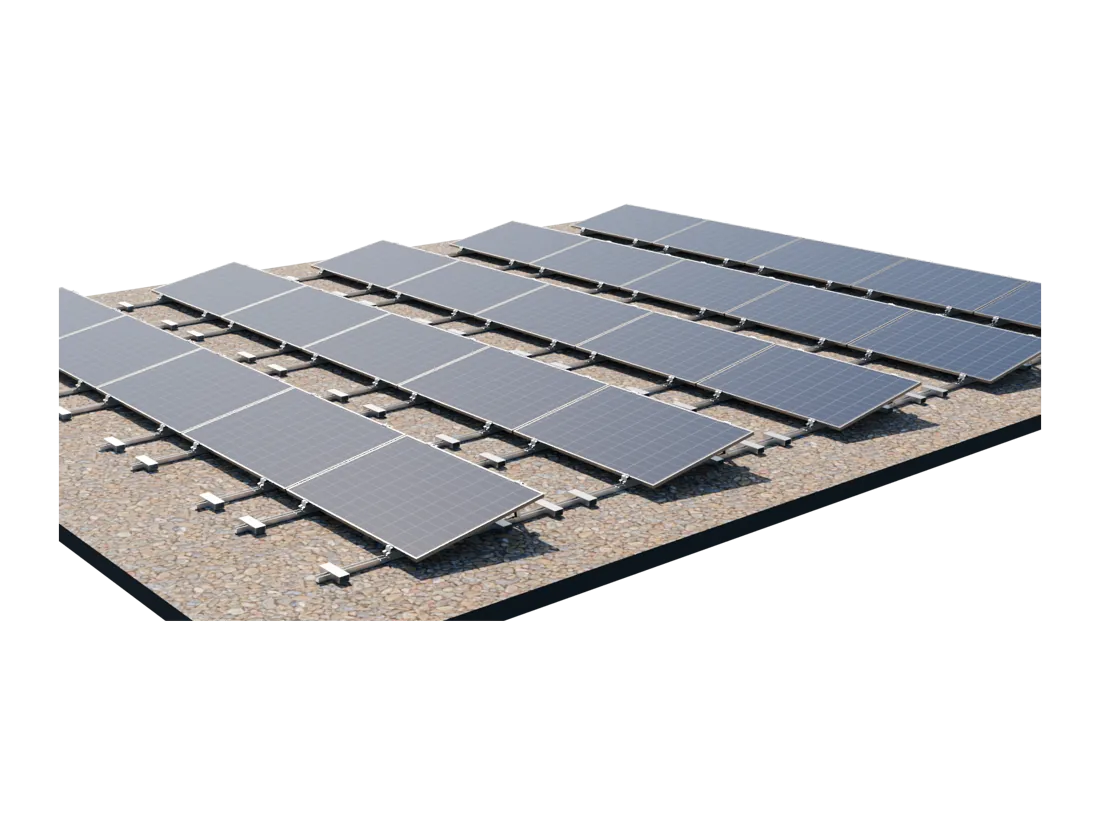

Triangles, South field

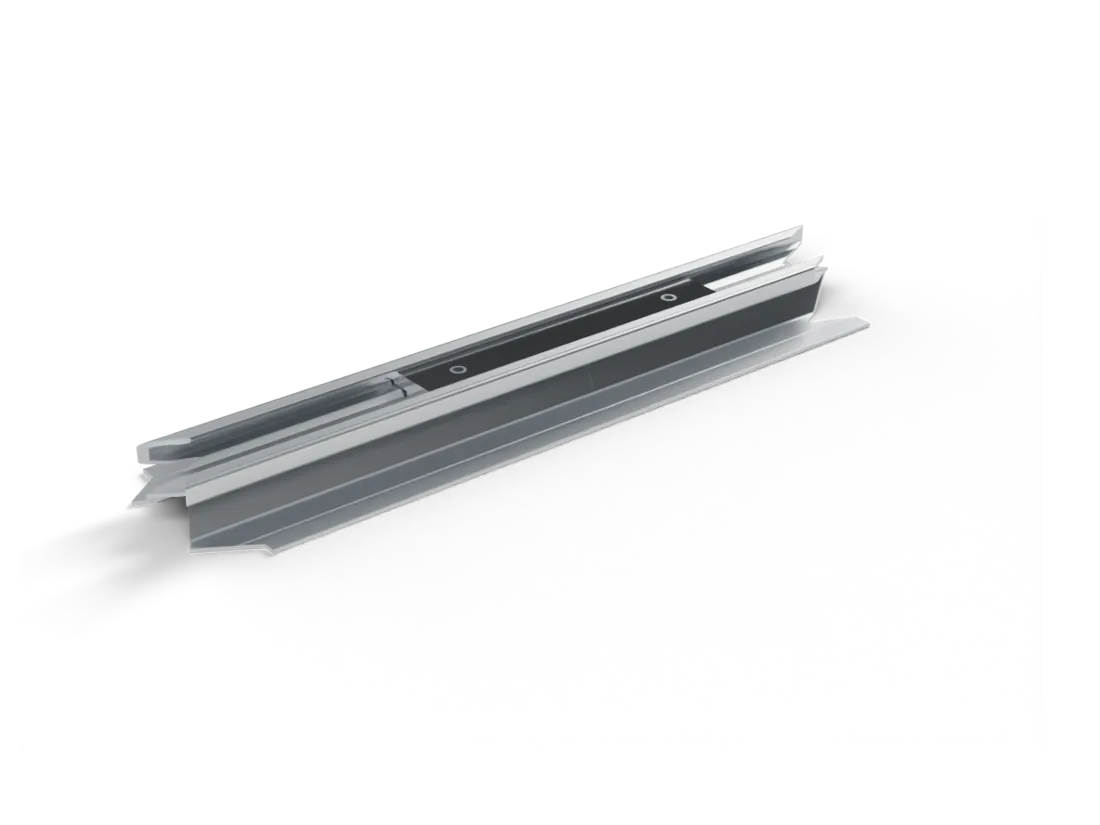

Junction for mini rail H25

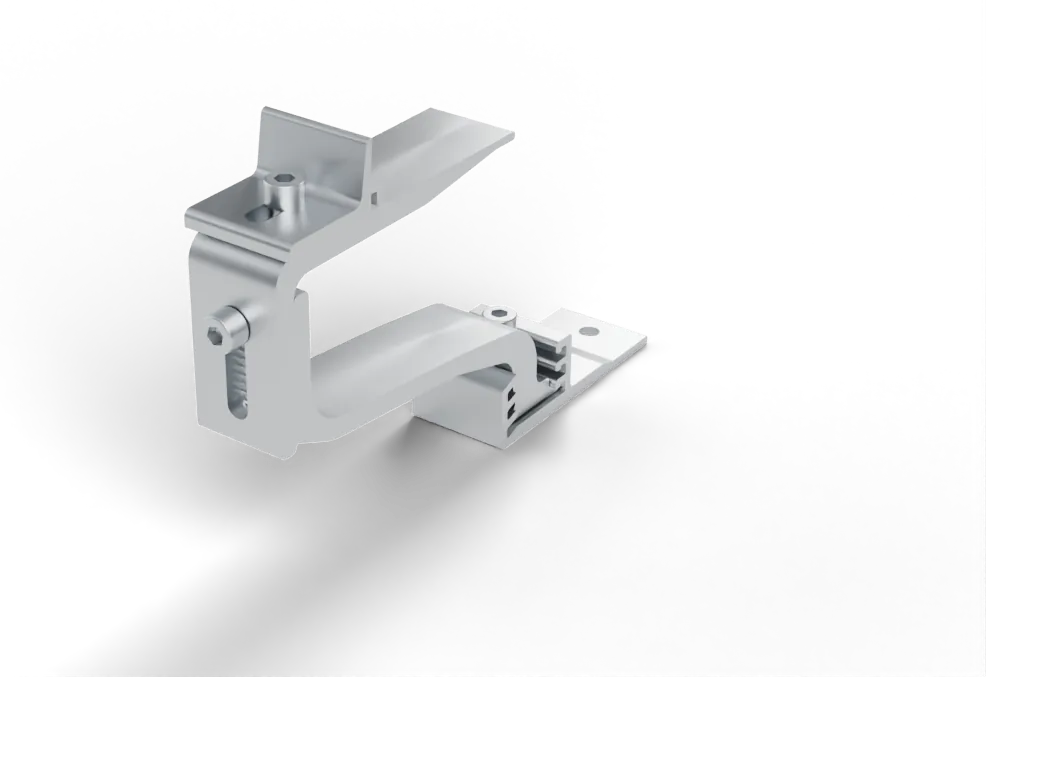

Short base hook

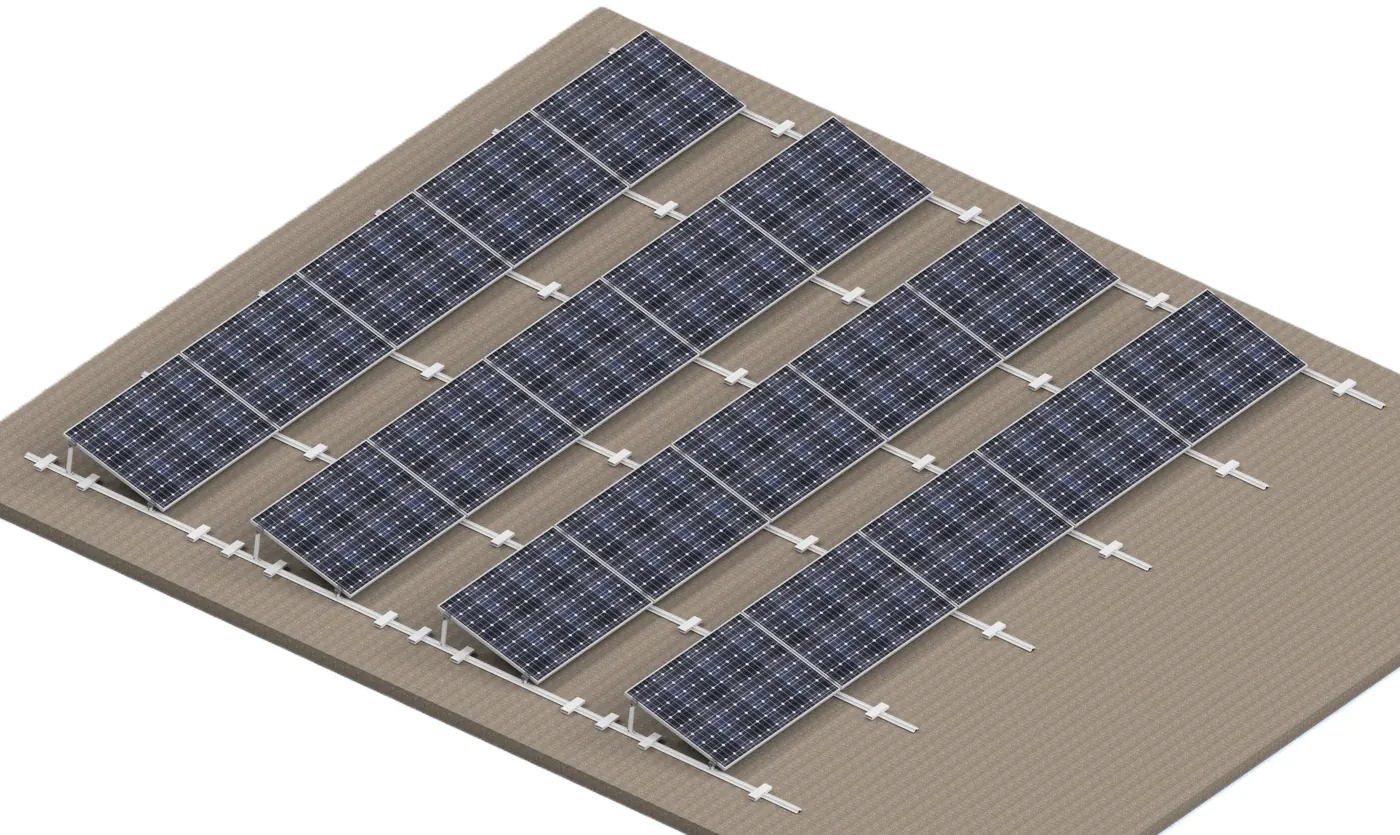

Tower New, East-West

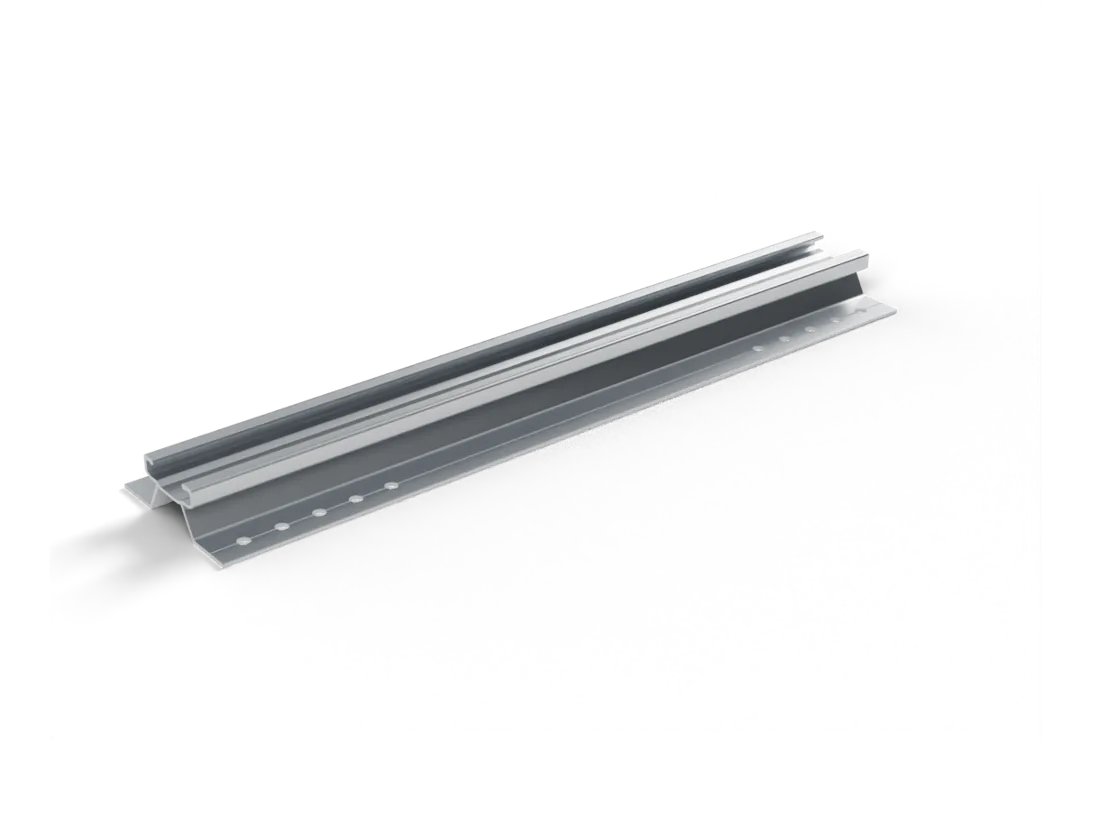

Mini rail H25
Front support CA

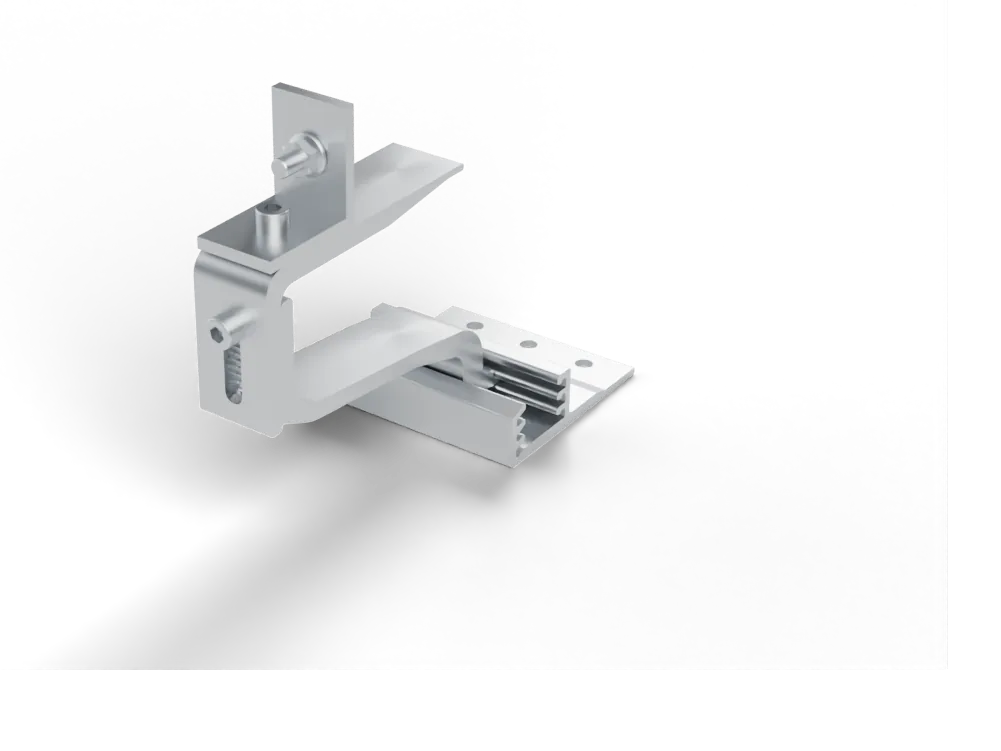

Hook with angular support for beam
Bitumen roof
Drawing, code and load test for every part.
We machine extruded aluminium profiles with a precision engineering method. Every component has a proprietary drawing, a code, stated tolerances and, for critical parts, an internal test report.
Let's talk about
your next project.
We work alongside installers to choose the right system and quickly solve any installation issue.
