Precision-machined aluminium for solar.
ARS Solar designs and manufactures components for rooftop PV mounting, mainly working with extruded aluminium bars. Over twenty years of experience in profile optimisation and manufacturing processes.
Smart solutions for module installation.
Our patents include adjustable anchor brackets, clamps usable from both front and side corners and adjustable tilt brackets. This approach simplifies storage and installation and makes projects more versatile and efficient.
We work to deeply understand our customers' processes, business models and goals. We want to take an active part in their projects, with solutions and technical and operational support, adding value and competitiveness to their work.
We prioritise working with installers, to solve issues promptly and ensure smooth, efficient installation of our products.
Reliability
Stable, long-lasting installations with consistent performance over time.
Versatility
Modular systems that adapt to different roofs, slopes and environments.
Precision
Optimised profiles and accurate machining minimise installation risks.
Superior quality
High-quality extruded aluminium and controlled manufacturing.
Designed by people who have worked aluminium for over twenty years.
Change one part, not the system.

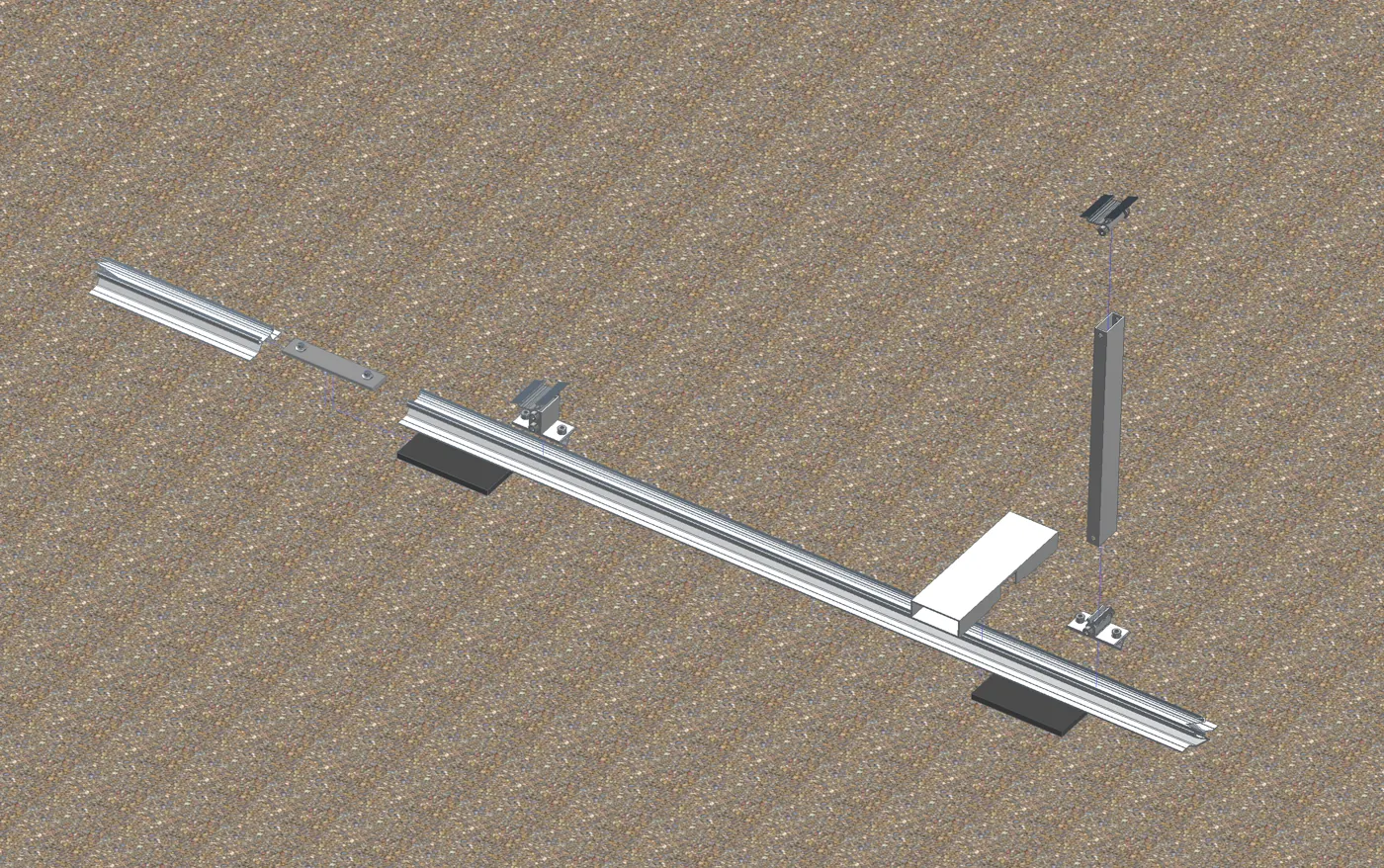

With Tower New, adapting the structure to a module size takes a single different part. Leftover parts can be reused on the next installation.
Modules rest where the manufacturer wants.
Support surfaces oscillate to match the positions required by module manufacturers, staying parallel to the module frame.
One column, two holes.
The column is a commercial tube with just two holes, so on-site changes take minutes.
Bench tested, not just calculated.
End clamp tested at 940 kgf while still in the elastic range: over 2.5 times the point load of a 1304×2500 mm module at 4000 Pa. Hook MM_SPF0076MF 120 kgf, angular support MM_SPF0588MF 170 kgf per point.
6063 T66 extruded profiles, machined in house.
Profiles up to 6400 mm, EN 755-9 tolerances and UNI EN ISO 22768-mK machining. Custom lengths for minimum batches.
