Flat roofs
Tower New system from 0° to 20° and triangles from 5° to 30°, ballasted or fixed, South or East-West orientation.
Components and codes
For flat roofs the 2026 catalogue offers two solutions. The modular Tower New system covers tilt angles from 0° to 20° for modules from 960 to 1134 mm, in South or East-West layout. Triangles also serve large modules, up to 1304 mm, with tilt angles from 5° to 30°.
Both can be fixed to the roof or simply placed and held in position by ballast, with EPDM pads to improve grip on the roof surface.
Tower New system
4 codesTower New, shared components
4 codesTriangles
5 codesTriangles, shared components
5 codesPV fastening elements
2 codesThe Tower New system

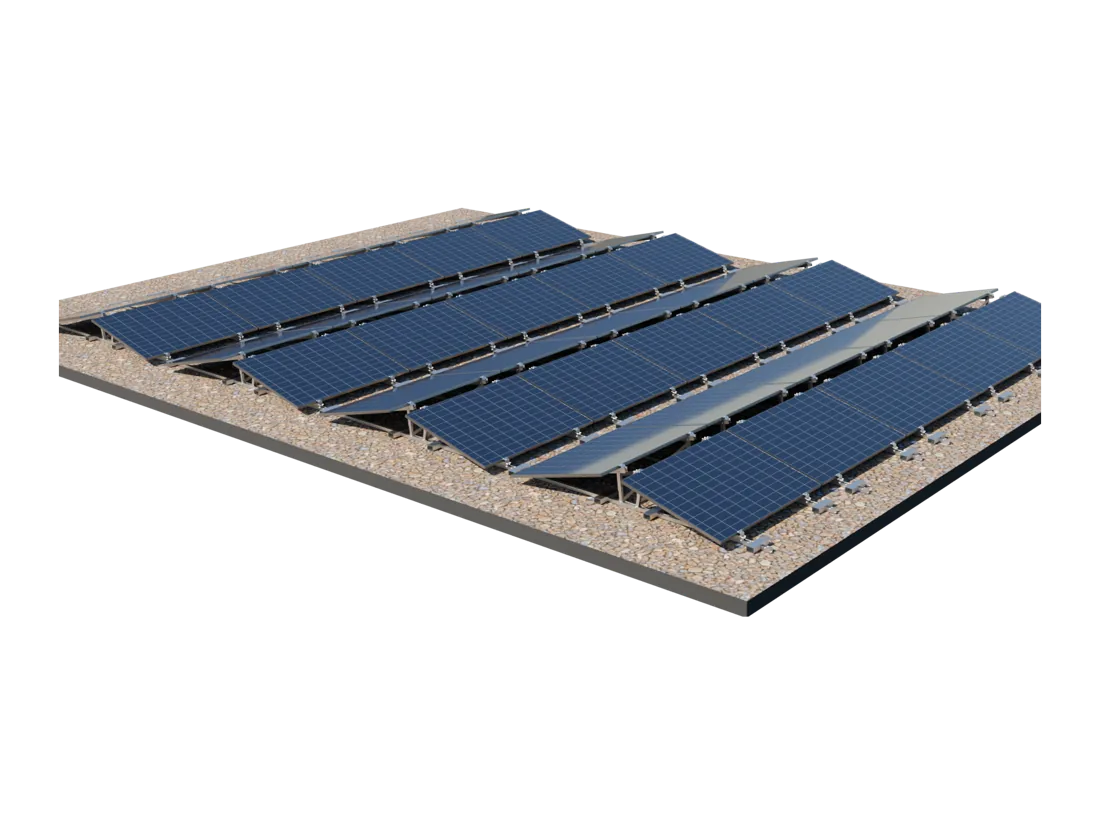

From 0° to 20° for modules from 960 to 1134 mm, East-West or South orientation. To fit a different module you change just one part.
| Tilt | TW 992–1002 | TW 1134–1205 |
|---|---|---|
| 0° | CA/CP MM_SPF0773MF | — |
| 5° | MM_SPF0787MF | MM_SPF0785MF |
| 10° | MM_SPF0783MF | MM_SPF0781MF |
| 15°std | MM_SPF0779MF | MM_SPF0777MF |
| 20° | MM_SPF0775MF | MM_SPF0762MF |
Choose tilt and module width.
| Tilt | CA | CP | CS | TW 992–1002 mm | TW 1134–1205 mm | Drawing |
|---|---|---|---|---|---|---|
| 0° | MM_SPF0773MF | MM_SPF0773MF | — | — | — | PDF ↓ |
| 5° | MM_SPF0773MF | MM_SPF0771MF | MM_SPF0772MF | MM_SPF0787MF | MM_SPF0785MF | PDF ↓ |
| 10° | MM_SPF0773MF | MM_SPF0771MF | MM_SPF0772MF | MM_SPF0783MF | MM_SPF0781MF | PDF ↓ |
| 15°std | MM_SPF0773MF | MM_SPF0771MF | MM_SPF0772MF | MM_SPF0779MF | MM_SPF0777MF | PDF ↓ |
| 20° | MM_SPF0773MF | MM_SPF0771MF | MM_SPF0772MF | MM_SPF0775MF | MM_SPF0762MF | PDF ↓ |
Shared components: BAS H25 base mini rail L=3200 mm (MM_PR303241AR), CON junction (MM_SPF0767MF), PAD EPDM pad (MM_SPF0582MF), BLS ballast support (MM_SPF0770MF), ECL end clamp (MM_SPF0092MF), MCL mid clamp (MM_SPF0100MF).
For large modules too.

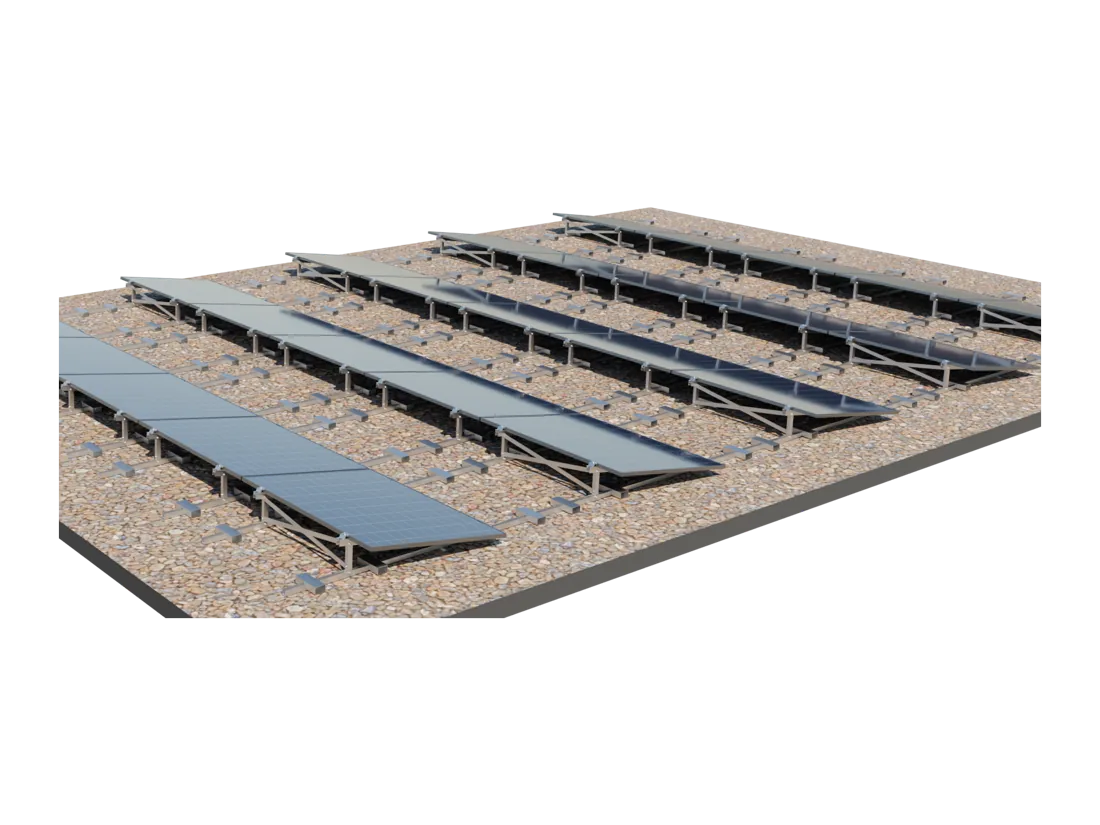

Fixed or placed and held by ballast, on flat roofs or low-slope trapezoidal metal roofs. Shared components for South (CON MM_SPF0815MF) and East-West fields (CON MM_SPF0829MF): ballast supports MM_SPF0820MF, EPDM pads MM_SPF0655MF, cross braces MM_SPF0831MF, end clamp MM_SPF0092MF.
